This month's Guitar of the Month comes from Mike Forrester, and this is his story.

My custom carved top doublecut guitar features a AAAA flamed European Maple top, and a one-piece Honduras Mahogany back and neck. The peghead veneer and fingerboard are African Ebony.

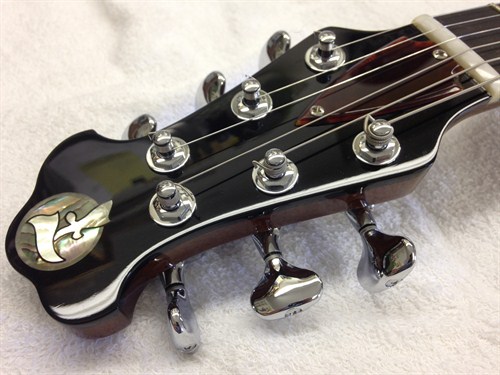

6

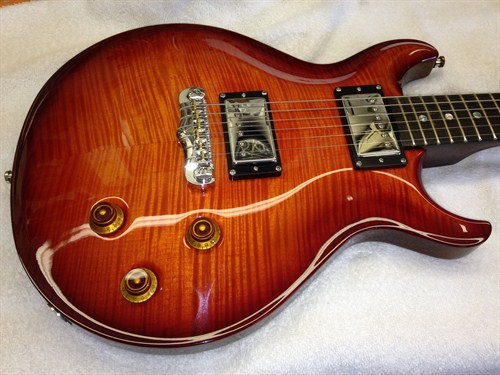

7

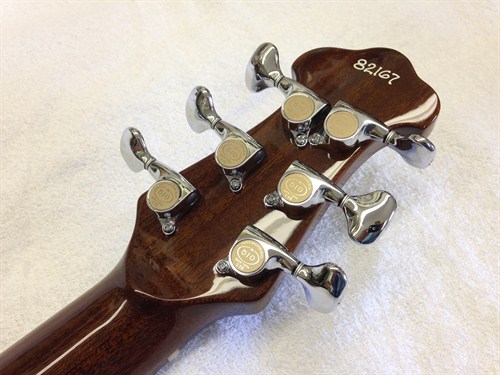

8

9



After I've finished final shaping of the entire guitar, I prepare the mahogany for the first coat of thinned Behlen's Stringed Instrument Lacquer by sanding the back and neck to 220 grit along the grain. The maple top is sanded to 320 prior to the custom-mixed amber StewMac Colortone stain. My daughter chose the Sunburst from a photo she saw, and we recreated it one tint at a time. There are a total of 4 separate custom-mixed tints on this guitar.

I follow the amber stain with 2 thinned lacquer wash coats, scuffed between coats.

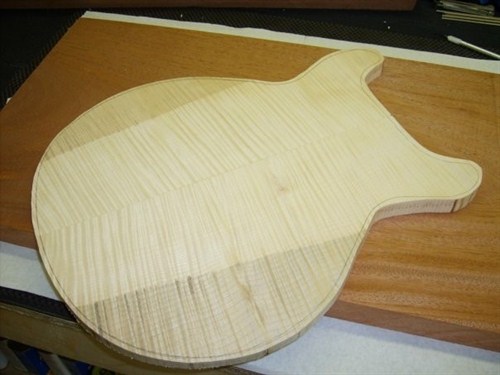

1

Next comes the Pore-O-Pac grain filler on the mahogany. It is left to haze, and then lightly scuffed off with 320 grit. I go against the directions and block-scuff longitudinally WITH the grain using a hard rubber sanding block behind the 320.

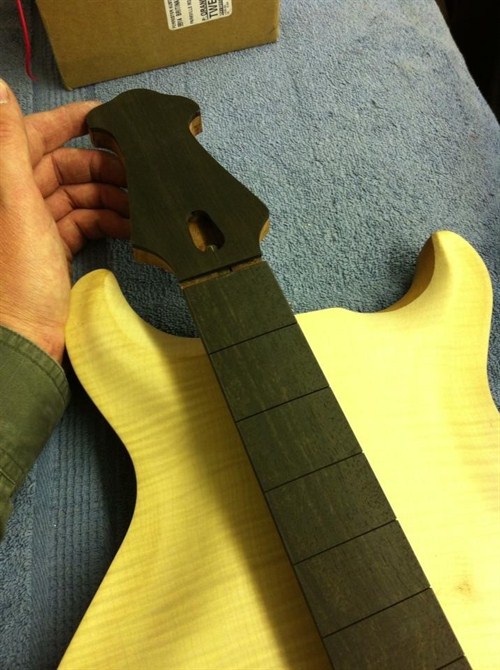

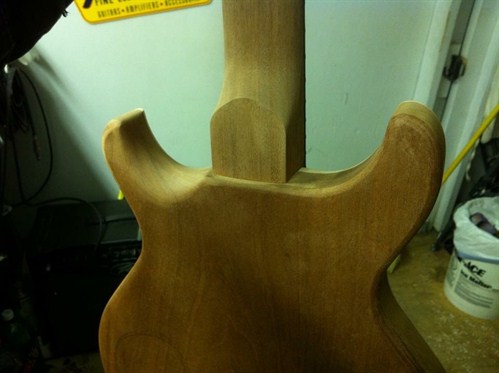

3

I follow the filler step with ONE coat of Vinyl Sealer on the entire guitar. Scuff longitudinally again with 320. Next comes the Gloss Stringed Instrument Lacquer. I start with one coat of clear, and then follow with my various shader coats. All shader tints are mixed into 50/50 thinned Gloss Stringed Instrument Lacquer. I skip the scuff steps between the shaders.

4

After the shaders I move on to clear. At this point I step up my mix ratio to roughly 1/3 thinner to 2/3 lacquer. I lightly scuff between these coats with 400 grit.

How many total coats depends on the depth of color, and the final finish thickness I'm shooting for. I've found that 10 coats of clear, sanded level between coats, usually does the trick.

After the finish has cured nice and tight and hard, I wet sand with varying grits of wet or dry sandpaper, starting with 1000 grit and ending with 2000.

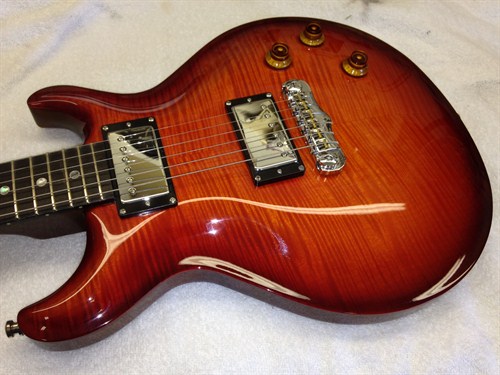

5

My favorite buffing compound is Diamond Cut by Meguiar's. I use an orbital buffer with a lamb's wool pad......a carryover from my custom motorcycle paint days. I will eventually move on to a pedestal buffer, but for now I'm comfortable with my orbital method.

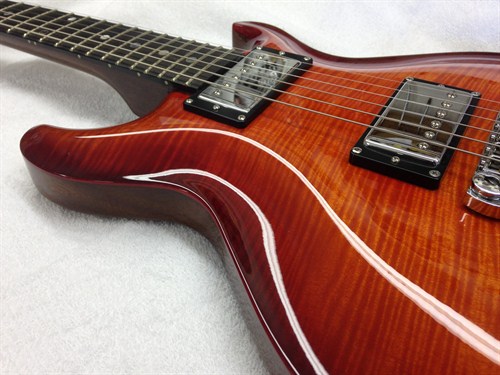

10
